DL9/

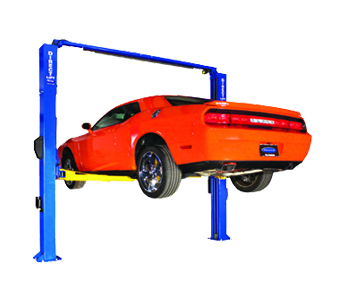

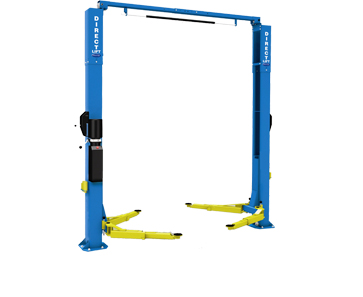

The Direct Lift DL9 is a 4082kg. capacity asymmetric arm 2 post lift.
Descripitions
- Single point lock release
- overhead model
- Powder coat finish
- 4082kg capacity
- 3642mm tall
- Asymmetric arm design
- Symmetric post design
- Anchor bolts included
Specifications
| Specs | |
| Model | DL9 |
| Lift capacity | 4082kg |
| Overall Height | 3607mm |
| Height to Shut-off | 3499mm |
| Minimum Ceiling Height | 3658mm |
| Minimum Adapter Height | 93mm |
| Maximum Lifting Height | 1930mm |
| Adapter Extension Heights | 1-3/4" (45mm), 5" (130mm) |
| Front Arm Reach | 711mm - 1054mm |
| Rear Arm Reach | 800mm - 1137mm |
| Overall Floor Width | 3327mm |
| Drive Through | 2515mm |
| Voltage† | 220V |
| Amps | 20 |
| Motor | 2.2 KW |
