RTP9/

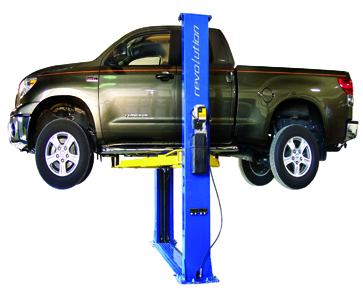

- The Revolution Lift RTP9 is a 4082kg. capacity symmetric 2 post lift.
- The RTP9 is one of the most popular automotive lifts we sell.
- It comes with a free set of truck adapters and all of the mounting hardware
Descripitions
- 4082kg. capacity lift for facilities with low ceilings
- Dual hydraulic cylinders with chains
- Carriage latch system engages every 76.2mm
- Secondary lock system includes a spring actuated slack
- chain locking device
- Truck adapters included
- ALI Certified
Specifications
| Specs | |
| Model | RTP9 |
| Lift capacity | 4082kg |
| Rise w/ Extensions | 1987mm |
| Rise w/out Extensions | 1829mm |
| Overall height | 2826mm |
| Overall Width | 3518mm |
| Drive-Thru | 2470mm |
| Arm Reach (Min/Max) | 762mm/1175mm |
| Min. Adapter Height | 89mm |
| Driver-Over Height | 38mm |
| Voltage/Amps | 208/230, 20 Amps |
| Motor | 2 HP |
| Min. Ceiling Height | 2870mm |
